Product Description

A.T.E.'s innovative Concentrated Solar Thermal system combines energy efficiency with renewable solar energy - thus delivering the largest savings in carbon-intensive fuels, and directly influencing the bottom-line.

PRODUCT

Concentrated Solar Thermal system

Concentrated Solar Thermal system

(Fully automated moving-focus paraboloid concentrator technology)

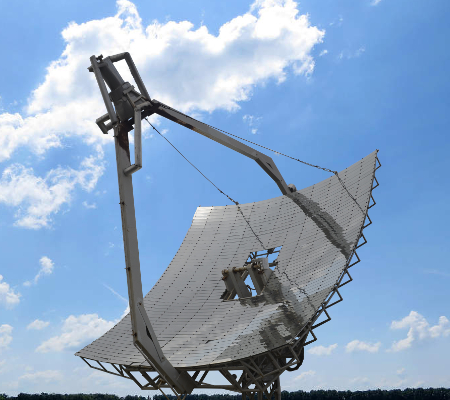

A.T.E.'s solar thermal concentrator automatically follows the sun throughout its motion in the sky. It reflects and concentrates sunlight into a 'receiver' filled with water and mounted at the focal point of the concentrator, thereby generating steam. This steam is used for various process applications, thus reducing the requirement of carbon-intensive fuels and directly influencing the bottom line.
Manufactured by: A.T.E. Enterprises Private Limited, India

  • FEATURES
  • BENEFITS
  • RESOURCES
  • GET A QUOTE
More
      Technical details:
  • Focal length: 4 m
  • Application range: laundry, pasteurisation, sterilisation, extraction, cooking
  • Receiver aperture diameter: 0.35 m
  • System weight: 1800 kg
  • Aperture area: 25 sq. m
  • Operating temperature range: 50-180ºC
  • Maximum wind speed under tracking: 10 m/s
  • Useful life of structure: 20+ years
  • Receiver absorptivity: 95 percent
  • Mirror reflectivity: 90 percent
  • Dryness fraction of steam: >85 percent
  • Rate of steam generation: 100 kg/day
  • Rated thermal power: 13.75 kW
  • Annual steam generation: 24000-30000 kg/year
  • Customised to the application
  • Uses renewable solar energy for operations
  • No special skills required for operation
  • Attractive payback
  • In-built safety features
  • Low maintenance cost
