The APN-W series are gas-liquid transfer pumps.The use of a special diaphragm allows the pump to transfer both air and liquid.

PRODUCT

APN-W

APN-W

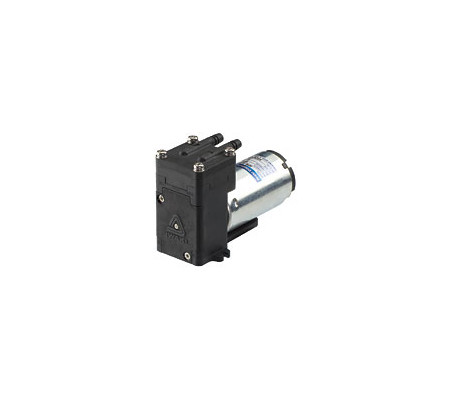

The APN-W series are gas-liquid transfer pumps used to transfer both air and liquid. The miniaturised and lightened body offers optimum sizing for various equipment such as analysers, in which compactness is always a key requirement.
Manufactured by: Iwaki Co. Ltd., Japan

  • FEATURES
  • BENEFITS
  • GET A QUOTE
More
      Technical Details
  • Discharge capacity (gas): 0.1-4.0 L/min (DC power), 3-5 L/min (AC power 50Hz)
  • Discharge pressure: 0.08 MPa
  • Vacuum: 34.66 kPa
  • Discharge capacity (gas-liquid): 1.0 L/min
  • MoC: GFRPP, EPDM, FKM
  • Power voltage: DC12/24V, AC220/240V (APN-085-W)
  •   Applications
  • Medical devices
  • Analytical/diagnostic equipment
  • Printing machines
  • Food vending machines
  •   Key Features
  • Designed for transferring both gas and liquid
  • Ideal for waste liquid collection
  • Ultra-compact and lightweight
  • Capable of self-priming under dry condition
  • High corrosion resistance
  • Low noise and oil-free design
  • Long life, can transfer both gases and liquids
  • Ultra-compact, lightweight design
  • Highly reliable; consistent self-priming even when pumping liquid waste slurry
