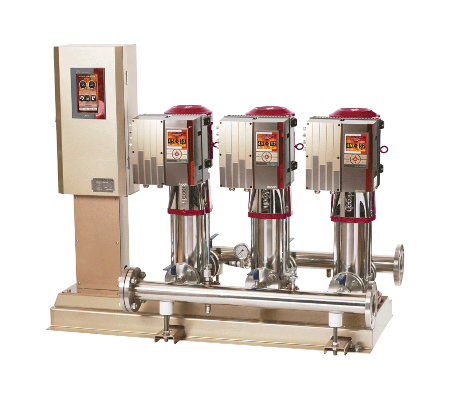

HyP-ULTRA

HyP-ULTRA

(Pressure boosting systems with energy saving, low-frequency drives)

HyP-ULTRA pressure boosting systems feature variable frequency drives that reduce power consumption and aid in extending the life of the system by reducing wear and tear. These pressure boosting systems are ideal for commercial and residential complexes. The HyP-ULTRA can also be integrated with existing or new building management systems, thus allowing monitoring and control of the system. It is designed to reduce or eliminate water hammer effects.
Engineered by: A.T.E. Enterprises Private Limited

  • FEATURES
  • BENEFITS
  • RESOURCES
  • GET A QUOTE
More
      Technical Details
  • Pressure range: 0-25 bar
  • Size range: 0-240 m
  • Material of construction:pump base - CI (TFV)/AISI 304(TFVI)/AISI 316(TFVL); impeller - AISI 304 (TFV, TFVI)/316 (TFVL); pump body - AISI 304 (TFV, TFVI)/316 (TFVL); suction manifold - AISI 304/AISI 316; discharge manifold - AISI 304/AISI 316; isolation valve - AISI 304/AISI 316; NRV valve - AISI 304/AISI 316
  • Flow range: 0-900 m3/hr
  •   Applications
  • Commercial complexes
  • Large residential buildings
  • Skyscrapers
  • Malls and multiplexes
  •   Key Features
  • Variable Frequency Drives (VFDs) ensure maximum power saving and minimum wear and tear of pumps
  • No need of a standby pump since all pumps on soft start
  • BMS compatibility/remote communication possibility
  • Robust systems
  • Longer pump life
  • Reduces water hammer in pipe
  • Total cost of ownership is low
  • Low maintenance cost
