PRODUCT

Weighting Arms

Weighting Arms

(Pre-calibrated weighting arms)

TeraSpin weighting arms are characterised by their robust design and corrosion resistant finish. Not only are these weighting arms built to last the lifetime of the ring frame or roving frame, but each weighting arm exerts the same load on top rollers irrespective of how long they are in use or at what position in the machine they are fastened. Loading springs used on TeraSpin  weighting arms are pre-calibrated for specified loads for an unlimited period of time.
Manufactured by: A.T.E. Enterprises Private Limited (Business Unit: TeraSpin), India

  • FEATURES
  • BENEFITS
  • RESOURCES
  • CASE STUDIES
  • GET A QUOTE
  • BUY NOW
More
      Technical Details
  • Applications: drafting system suitable for speed frames and ring frames of any make - for cotton,man-made fibres,wool, and blends
  •   Key Features
  • Single piece ergonomic lifting knob
  • Maintenance-free
  • Choice of load selection on each top roller
  • Reliable loading through proven helical coil springs
  • Easy to remove and mount rollers
  • Consistent results over years of use
  •   Variants for cotton ring frame

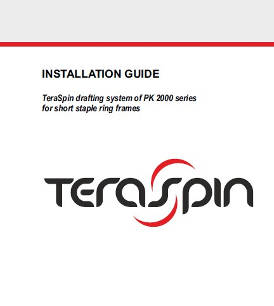

  • PK 2025-1251331 (suitable for short cradle)
  • PK 2035-1251784 (suitable for medium and long cradle)
  •   Variants for worsted ring frame

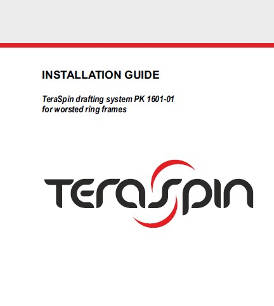

  • PK 1601-01 (with Zinc plating)
  • PK 1601-01 NC (with Ni-Cr plating)
  •   Variants for roving frame

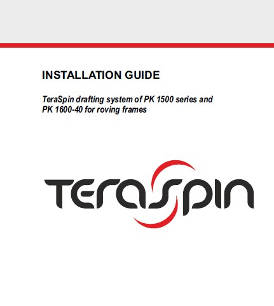

  • PK 1500-0962604 (Zinc plated, 3-roller drafting)
  • PK 1500-0962604 NC (Ni-Cr plated, 3-roller drafting)
  • PK 1500-0962604 NK (Ni-Cr plated, 3-roller drafting with new knob)
  • PK 1500-0962602 (Zinc plated, 3-roller drafting)
  • PK 1500-0962602 NC (Ni-Cr plated, 3-roller drafting)
  • PK 1500-0962602 NK (Ni-Cr plated, 3-roller drafting with new knob)
  • PK 1500-0001938 (Zinc plated, 4-roller drafting)
  • PK 1500-0001938 NC (Ni-Cr plated, 4-roller drafting)
  • PK 1500-0001938 NK (Ni-Cr plated, 4-roller drafting with new knob)
  • PK 1500-0001940 (Zinc plated, 4-roller drafting)
  • PK 1500-0001940 NC (Ni-Cr plated, 4-roller drafting)
  • PK 1500-0001940 NK (Ni-Cr plated, 4-roller drafting with new knob)
  • PK 1600-40 (Zinc plated, 4-roller drafting)
  • PK 1600-40 NC (Ni-Cr plated, 4-roller drafting)
  • Suitable for a wide variety of fibres and yarn counts
  • Free from vagaries of pneumatic pressure loss or pressure variations
  • No height gauge setting required after cot buffing within the range
  • Consistent quality of yarn
  • Virtually maintenance-free
  • Long service life
