Machine mounted lightning fast LED stroboscope for full print width web monitoring. The operator can check and take corrective action to reduce the print material wastage.

PRODUCT

StrobAXIS machine mounted

StrobAXIS machine mounted

(Lightning fast machine mounted LED stroboscopes)

Through StrobAXIS, the moving web is illuminated by a periodic series of sharp and short flashes. At a certain frequency, the print web appears to be stationary or ‘near stationary’, allowing the operator to check the print web for any print errors. The operator can then take necessary corrective action to reduce expensive print material wastage. The StrobAXIS’ high powered and energy efficient bright white LEDs provide uniform illumination along with the wider illumination angle permits operators to identify print errors on the web and take corrective action to prevent wastage. The StrobAXIS’ precise strobe control means that operators can easily match the frequency of the print web. An LCD panel is provided for display and setting/adjusting of illumination intensity and flash frequency parameters. StrobAXIS helps in detecting defects such as colour streaks, voids, bleeding, drags and holes, missing print, etc. StrobAXIS is designed for various applications including printing, labelling, slitting, doctoring, die-cutting, and embossing, among others.
Manufactured by: A.T.E. Enterprises Private Limited, India

  • OVERVIEW
  • FEATURES
  • BENEFITS
  • RESOURCES
  • GET A QUOTE
More

Over the past few years, the print and packaging industry has become very competitive; the impetus being on improved print quality and reducing wastage of expensive raw materials. Material rejections increase rework, thus negatively affecting productivity and therefore, profitability. Printers and converters are increasing production speeds, resulting in shorter job runs. The shorter job runs and higher production speeds lead to operators/printers being more agile to spot print defects. StrobAXIS is a new addition to the operator’s arsenal to combat print defects. At high production speeds, the lightning fast StrobAXIS illuminates the moving web with a series of periodic sharp and short flashes. At a certain flash frequency, the web appears to be stationary or near stationary, allowing the operator to check the web for print errors. The operator can then take corrective action to reduce print material wastage.

      Technical Details
  • Flashes per minute (FPM): 30 - 15000
  • Maximum web speed: 2000 metre per minute
  • Variable intensity flash duration: 10 - 150 µs
  • Coverage area: As per requirement
  • Type of light: Flood light
  • Type of LED: Bright white LEDs
  • Power consumption: 48 Watts (typically for 1200 mm web width)
  • Power requirement: 230 VAC
  • Weight: Approximately 7 kg
  • Automatic setting: Last configuration stored automatically
  • LCD panel: Setting parameter
  • Optional fittings: Encoder or mark sensor

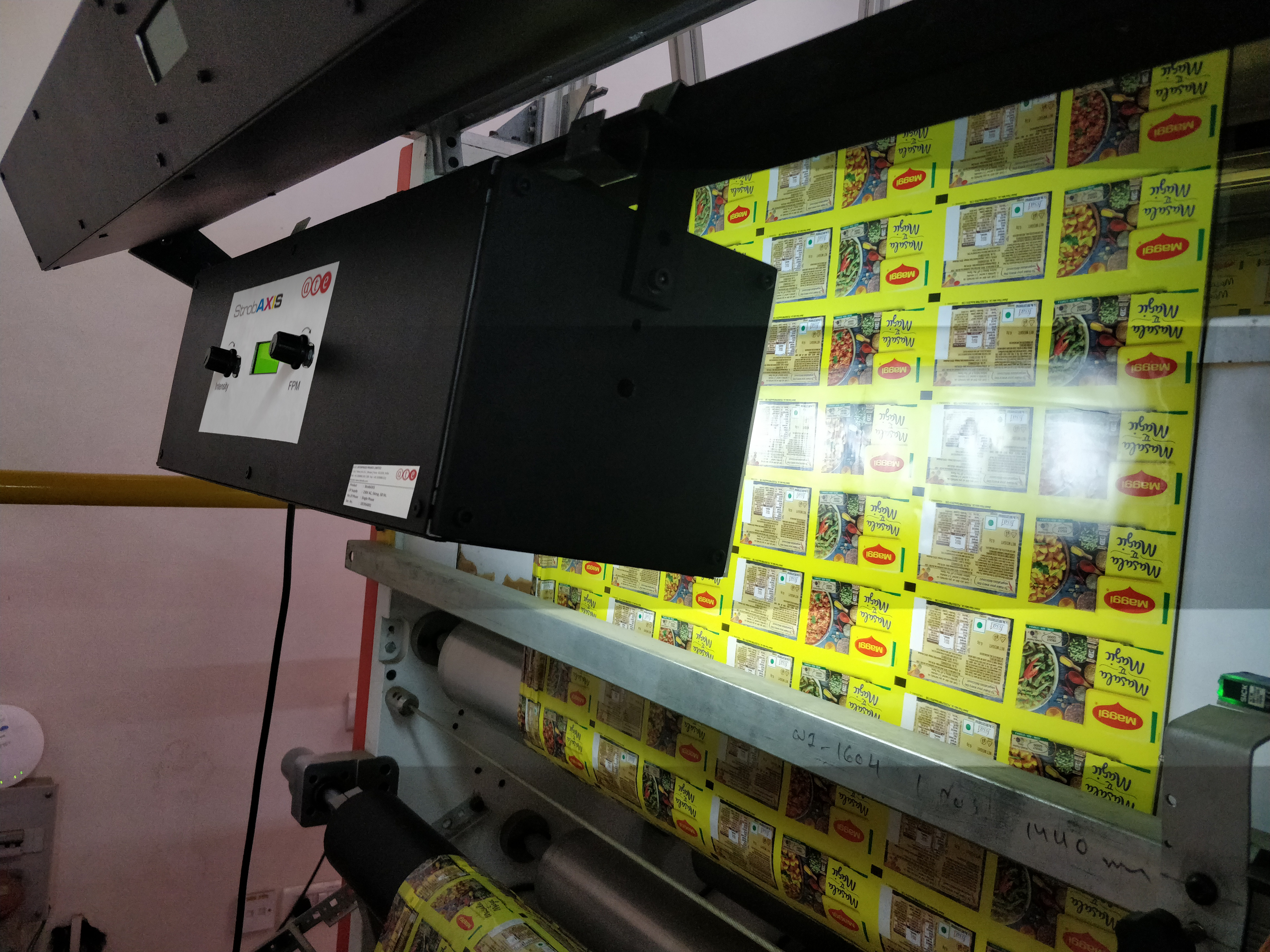

  • Mounting: Mounted at rewinder roll at a distance of 1' from the web
  •   Key Features
  • Precise web monitoring
  • Instant error identification
  • Powerful high bright white light LED
  • Digital stroboscope
  • LCD panel for setting/adjusting parameters (illumination intensity and flash frequency)
  • Scan mode
  • Encoder or mark sensor
  • High temperature compatibility
  • Accurate strobe control
  • Bright and uniform illumination with energy efficient LED strobe
  • Wide illumination angle with modular LED technology
  • Automatic synchronisation of machine speed with FPM
  • Full circumference monitoring
  • Quick and easy intensity and FPM adjustments
  • Fast aperture
  • Sharp visibility, high accuracy
  • Handy yet robust
  • Light weight and easy to handle
  • Long life
